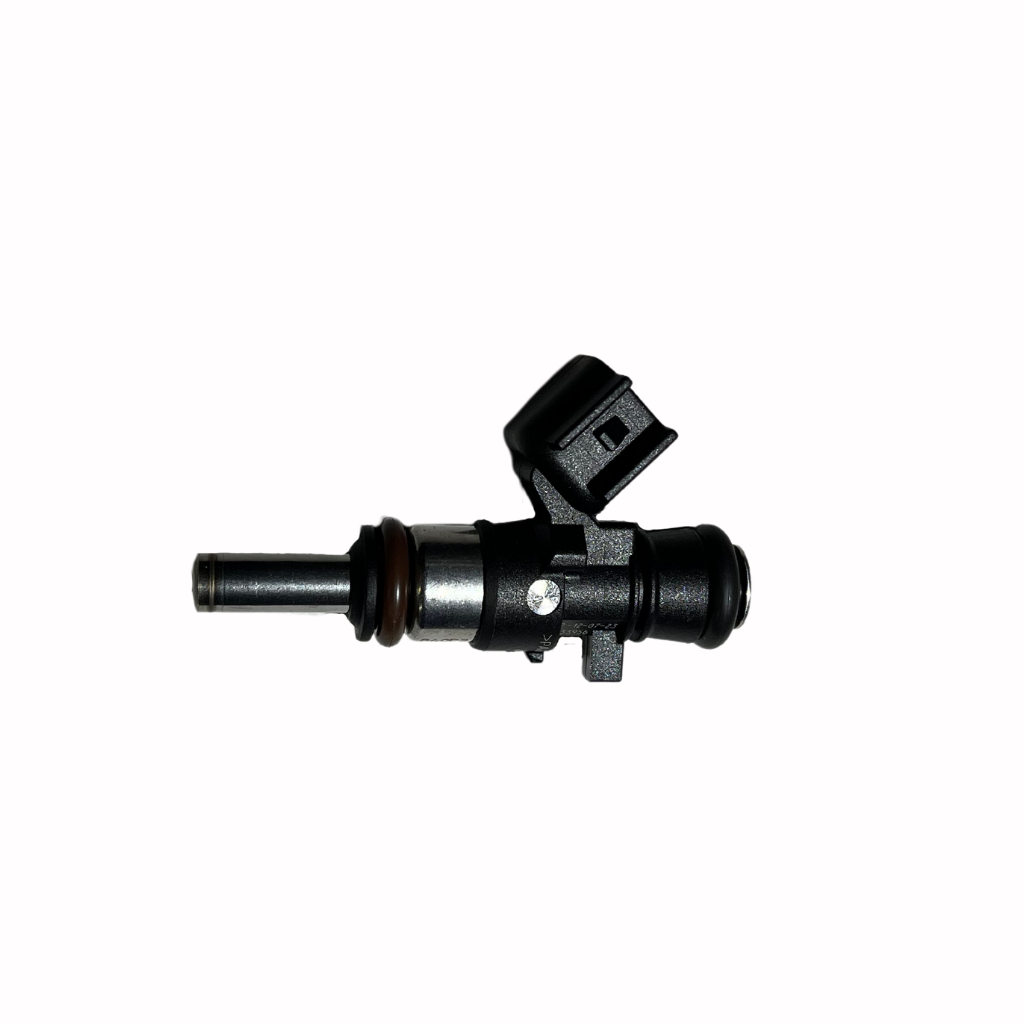

Bosch injector 1400cc
Bosch
Reviews
Help others choose right. Be the first to write a review!
Write a reviewBosch 1400cc Injector
Name: Bosch 1400cc
Part number: 0280 158 xxx (modifierad)
Package: 1x SPDBS1400 +2x adapter
Connector: Bosch USCAR
Length: 33,6mm - EV 14C (Compact) Use top and bottom adapter to get 60,65mm EV 14L (Long)
Injector tip: xT 24mm
O-ring top: 14mm Viton
O-ring bottom: 14mm Viton
Body diameter: 16mm
Impedance: 12 ohm
Spray pattern: Conical (20 degrees)
Spray angle: Neutral (0 degrees)
Fuel: E85 / M100 compatible and can handle other standard fuels due to the stainless internal parts. ATTENTION! If the injector is to be run on methanol, it must be run through with regular fuel after use. These injectors must not be in contact with methanol over more extended periods.
Max flow measured static in test environment
Static flow @ 3bar (43.5psi) = 1400cc/min
Static flow @ 4bar = 1680cc/min
Static flow @ 5bar = 1920cc/min
Static flow @ 6bar = 2100cc/min
Please note that test environment versus practical use can vary widely depending on peripheral equipment and other technical factors. However, this is excellent information on what to expect from the injectors and essential information when choosing other components in the fuel system, such as fuel pump, fuel pressure regulator, and fuel filter.
Engine power Turbo
Petrol 10% margin
1cyl - 184hp (184x1)
4cyl - 736hp (184x4)
5cyl - 920hp (184x5)
6cyl - 1104hp (184x6)
8cyl - 1472hp (184x8)
Ethanol 10% margin
1cyl - 160hp (160x1)
4cyl - 640hp (160x4)
5cyl - 800hp (160x5)
6cyl - 960hp (160x6)
8cyl - 1280hp (160x8)
Engine power N/A
Petrol 10% margin
1cyl - 240hp (240x1)
4cyl - 960hp (240x4)
5cyl - 1200hp (240x5)
6cyl - 1440hp (240x6)
8cyl - 1920hp (240x8)
Ethanol 10% margin
1cyl - 200hp (200x1)
4cyl - 800hp (200x4)
5cyl - 1000hp (200x5)
6cyl - 1200hp (200x6)
8cyl - 1600hp (200x8)
Flow matching
These injectors are supplied with basic flow matching and checking that there is no leakage. The basic flow matching has acceptable tolerances within 3% variation over a dynamic register but documentation and other data are not included in this option.
When you choose that we do a real flow matching, we match the injectors even more accurately within 1% variation and documentation is included for the injectors and the flow matching. We also check more parameters such as spray pattern, resistance, etc.
----------------
