Link G4X StormX Engine Management
Link - ECU
Reviews
Help others choose right. Be the first to write a review!
Write a reviewLink G4X StormX Engine Control

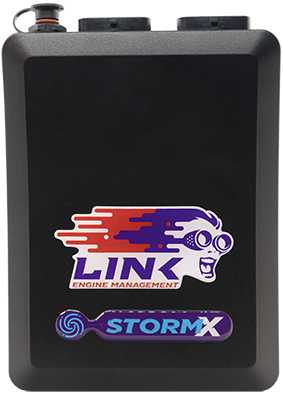

The Link G4X StormX ECU is the latest version of Link’s reliable, “mid-range” ECU. The StormX supports sequential control for up to eight cylinders or four rotors.
StormX includes everything AtomX and MonsoonX offer plus:
- More advanced configuration features like a built-in trigger oscilloscope
- Stepper motor
- Idle control
- Support for knock sensors
- Boost control for open and closed loop
- Plus motorsport features such as gear cut/blip, Antilag, and Launch Control.
StormX includes enhanced data logging with 512 megabytes of logging at 32 bits across up to 250 channels. Up to 1 kHz per channel, with a maximum of 100 kHz/sec.
StormX also provides 8 times faster communication, enabling fast log downloading and rapid logging transfer to the new and improved PC-Link software.
Looking for traction control or e-throttle? Check out XtremeX or FuryX.
If you have direct injection, you’ll need to use the Force GDI.
Inputs
8 x Digital inputs
3 x Temperature inputs
8 x Analog inputs
2 x Trigger inputs
2 x Knock sensor inputs
Outputs
8 x Injector drives
8 x Ignition drives
8 x Auxiliary outputs^
+5V Power supply for sensors
+8V Power supply for sensors
^Unused fuel and ignition outputs can be used as additional AUX outputs
Communication
1 x CAN bus
1 x USB connection for laptop / PC-Link
Advanced features not available in AtomX and MonsoonX
- Built-in trigger oscilloscope.
- 2x knock sensors
- Open and closed loop lambda control with up to three interchangeable tables.
- Stepper motor control
- Most motorsport features, including full gear shift control, antilag, and launch control.
- Up to 4 fully variable VVT controls, closed loop.
Product includes
Supplied with USB cable and mounting bracket.
Support
- Compare different ECU models
- Go to wiring diagram (Link G4X StormX Quick start guide)
- Download PC-Link software (Free)
- Fault codes
- Technical help
Phone: +46 33281900 - 10:00-14:00 UTC +1 (English, Norwegian, Danish, and Swedish)
Email: [email protected] - 24/7
Urgent 24/7 phone support here. (Please read support pages first) - DIY Documentation
When downloading PC-Link software, comprehensive manuals are available. - Community / Forum
----------------
