Write a reviewSafety ring Kardan ZF / Getrag

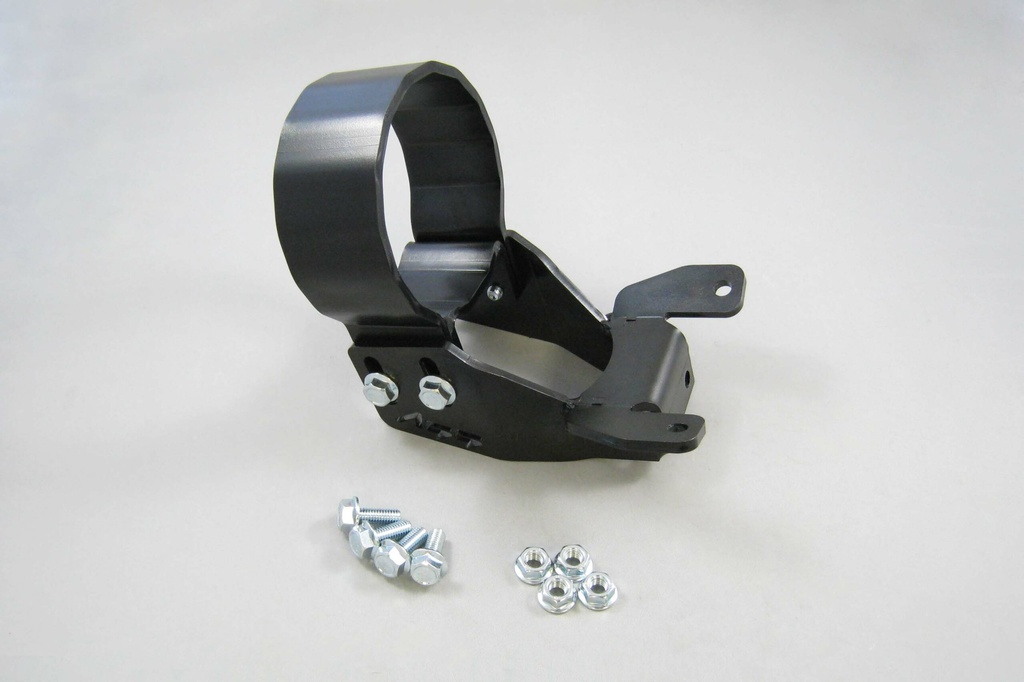

Cardan shaft circlip designed to easily fit onto our gearbox beams for BMW ZF and Getrag gearboxes.
Safety ring for cardan shaft which is manufactured in parts for easy assembly. The opening of the ring is approx. 67mm.
It can be mounted on a larger cardan shaft, but then you have to thread it from the end.
The ring is 50x5mm S355 material like the rest of the bracket.
The diameter is approx. 110mm outside and 100mm inside.
Cardan ring is from 2017 an SBF requirement for all Pro-Int cars within Swedish Drifting.
For Volvo 740 / 940 it only fits our new generation beam
AS-002001-03 also for 240 AS-002003-01.
For Volvo 240 it does not fit the oldest beams which are made in 2 parts and which are screwed together in the middle.
Then there is beams that have been sold after that lack the attachment holes for the safety ring but then you can easily hold the bracket there, mark the holes and drill yourself.
All gearbox beams sold for 240 and 740 / 940 today are made to fit.
Other names for this safety ring can be snap ring, gimbal ring and drive shaft safety loop.
Made in 5mm sheet steel S355 and electro-galvanized matt black.
Incl. screw for mounting.

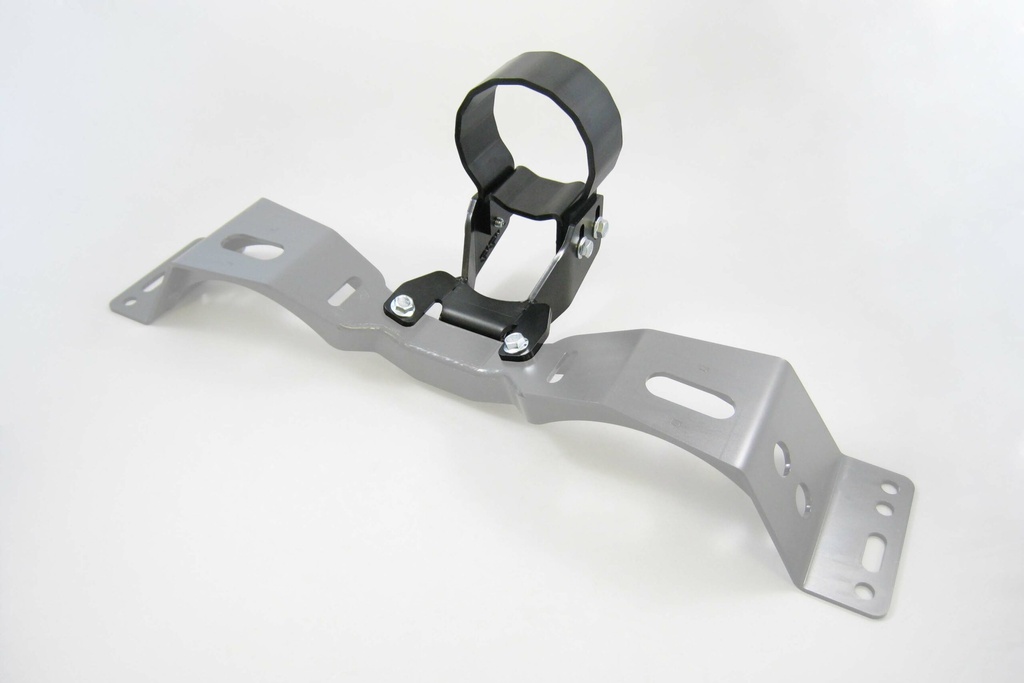

Fits bolt on our gearbox beams for BMW ZF and Getrag gearboxes.
----------------
